1D and 2D CCD scanner for reading QR codes, USB and wireless

CCD scanner for use as a barcode and QR code reader .
Easy to use, it is the product with the best quality/price ratio on the market today.

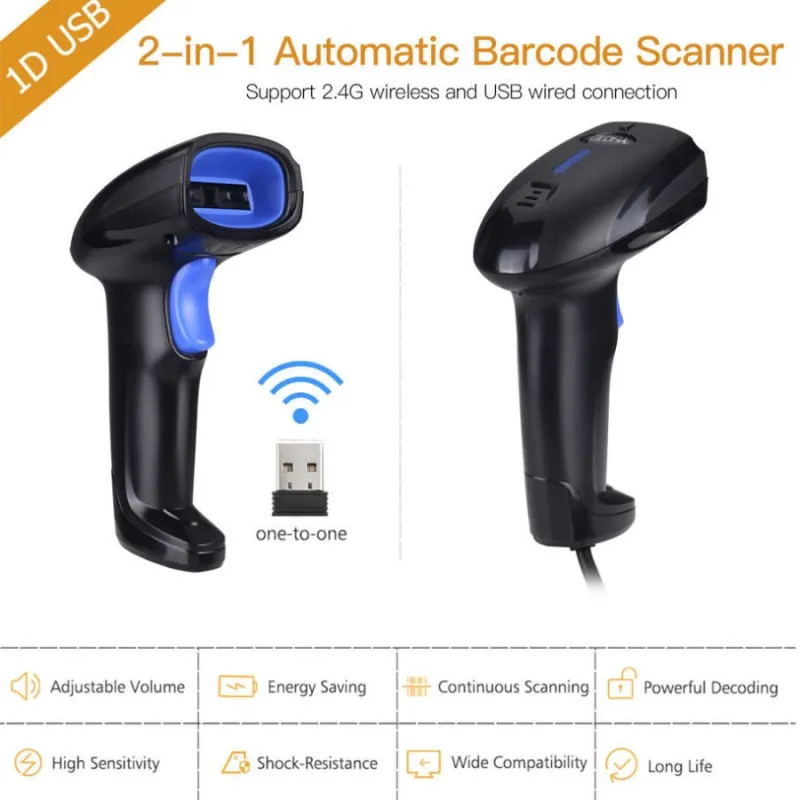

Dual connection via 2.4G wireless and USB cable, easy to read 1D barcodes such as: Code 11, Code 39, Code 93, Full ASCII, Code 32, Code 128, Code 128 ISBT, Codabar, ITF 25, MSI, UPCA, UPCE, EAN13, EAN8, UPC, EAN, Industrial 25, China Post, Interleaved 2 of 5, etc.

High-speed auto scanning: Plug and play, supports auto scanning without pressing the trigger;

Supported by Windows X/ 7/ 8/ 10/, MAC, Laptop, etc.
Recommended for use in supermarkets, warehouses, bookstores, logistics, industry, retail stores, pharmaceutical hospitals, etc.

Technical Specifications:
1D and 2D Wireless & Wired Barcode Scanner
CPU : ARM 32-bit Cortex

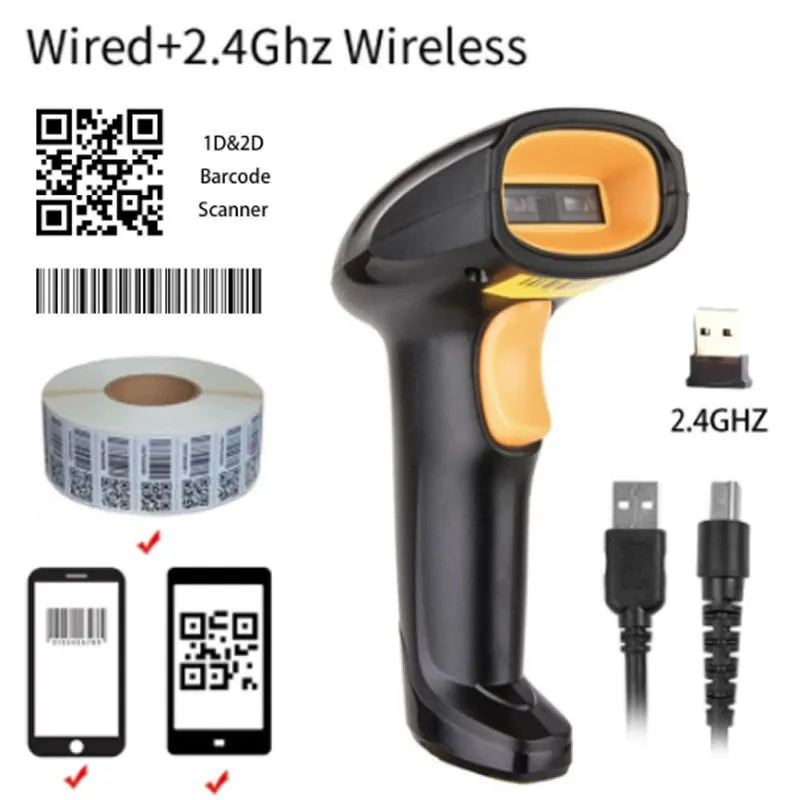

Connection: 2.4G Wireless and USB cable
CCD technology with laser light: 650nm Visua Laserl Diode

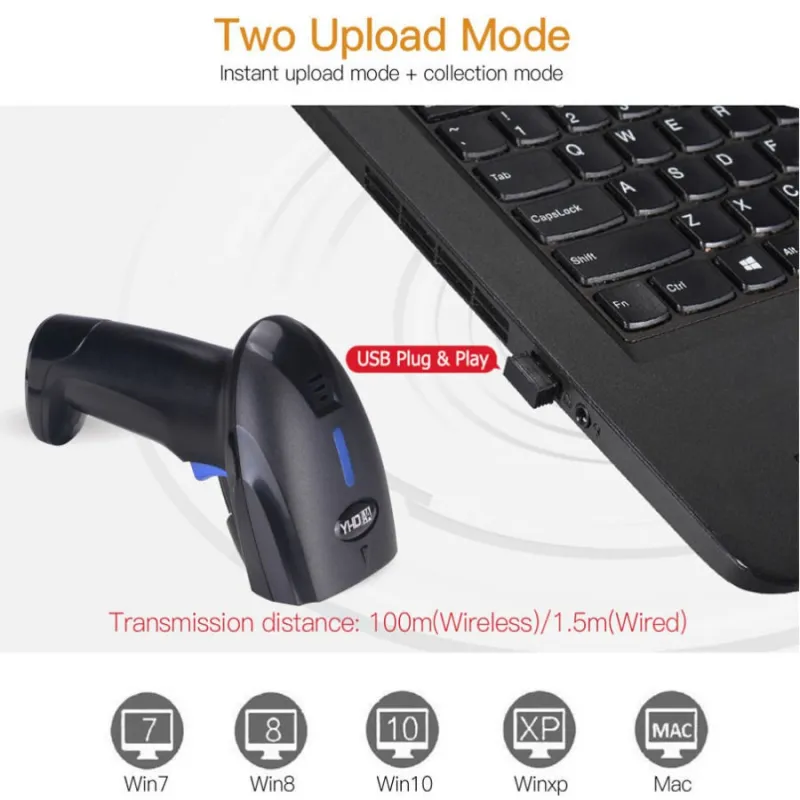

Range/Distance: 100m (Wireless) or 1.5m with cable
Resolution: 4mil
Storage: 100,000 Barcodes
Battery: 3.7V 1800mAh
Charging time: 3-7 days
Indicators: Buzzer & LED
Scan speed: 300 scans/sec
Trigger Mode: Handheld, Continuous
Scanning width: 5-30cm
Contrast: ≥25%
Scanning angle: Roll ±30°, Pitch ±55°, Yaw ±60°
1D decoding capability: UPC /EAN ,C ode128 , Code39 , Code 39Full ASCII , Coda bar , industrial /Interleaved 2 of 5 Code93 , MSI , Code11 , ISBN , ISSN , China post , etc.
Operation at: 5V DC
Power consumption: 0.7mW - 38MA(in use), 30MA(in standby), 185MA(max)

Operating temperature: -20℃-50℃
Button lifespan: more than 5.000.000 clicks
Drop resistant up to: 1.8m
Supported by: Windows XP, 7, 8, 10, MAC, Laptop
Size: approx. 6.2*10* 6.2cm
Scanner weight: 170g

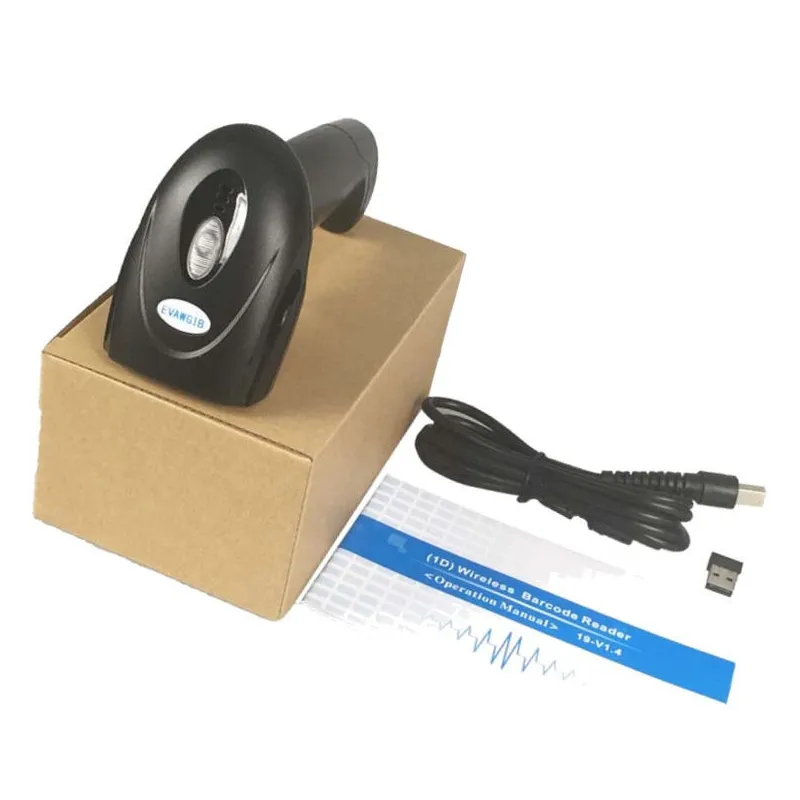

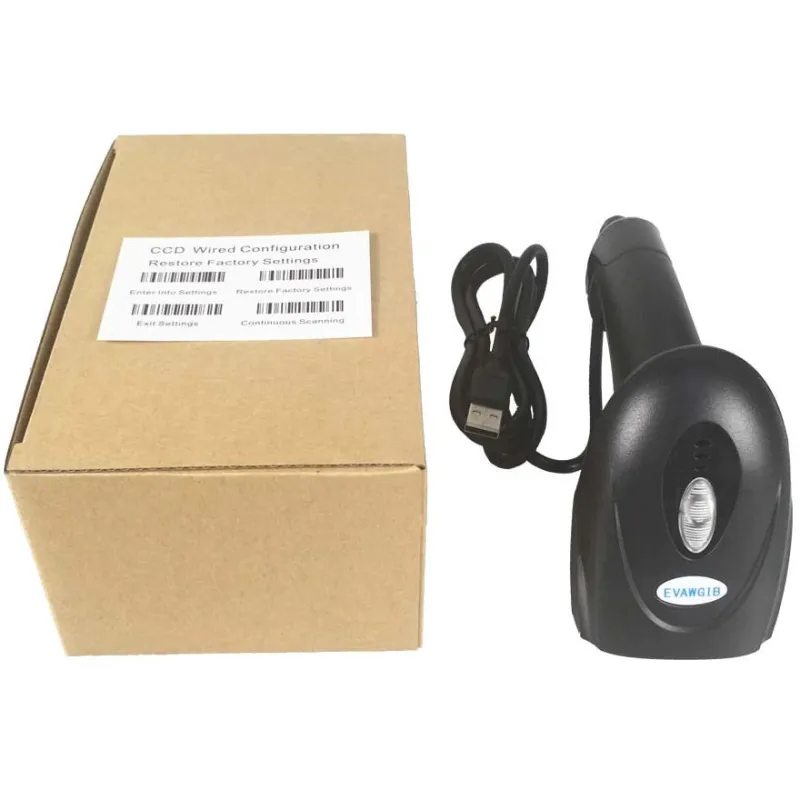

Package Contents:
1 * Scanner
1 * USB Cable
1 * USB Receiver Min
1 * Guide Manual

Product photos are not binding. The color and/or shape of the product you receive may differ from the one shown in the photo, but it will have the same technical characteristics.

Attention...!

Please read the following notes carefully to understand the difference between CCD and Laser and the classification of 1D and 2D codes.

"Laser" scanners cannot scan the barcode on the screen

"CCD" scanners can scan the barcode on the screen

Below is a classification of the most common codes.

2D codes (PDF417, QR code, Micro QR, Data Matrix, etc.)

"1D" codes (Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, code 93, UCC/EAN-128, GS1 Databar, Matrix 2, Di 5, code 11, industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey)
