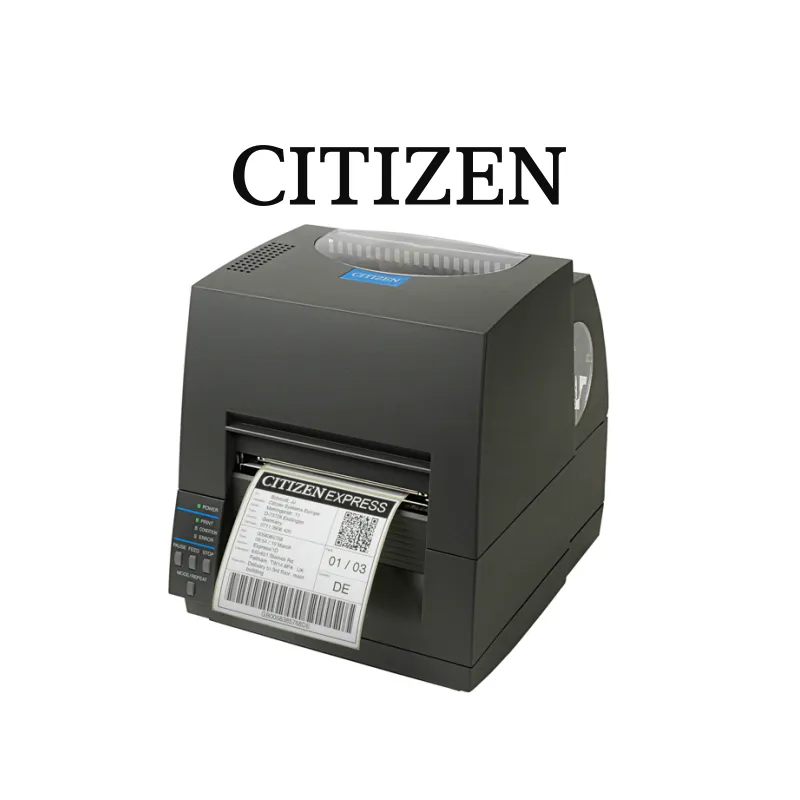

Citizen CL-S621 Thermal and Transfer Label Printer

The Citizen CLS621 printer, an evolution of the older CLP 521 and CLP621 models, is a reliable and versatile printer for printing labels, tags and ribbons for compositions using both direct thermal and thermal transfer technology using ribbons.

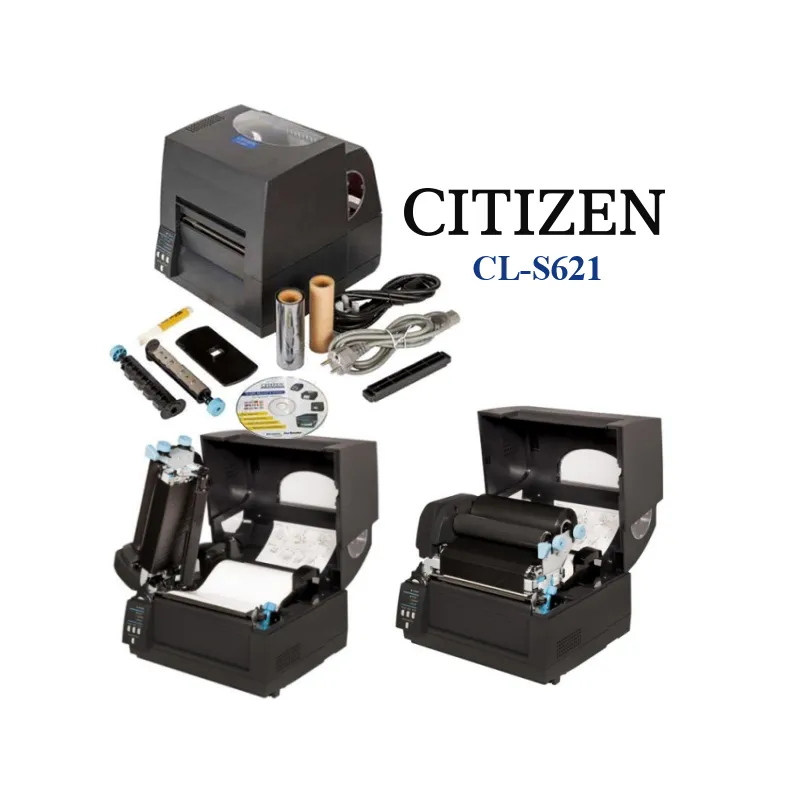

Excellent accessibility to the head unit and ease of loading both large rolls and foil thanks to the patented Citizen head opening system.

Equipped with an upper and lower photosensor with adjustable position, this printer can print on all types of labels with both lateral and central gaps, with notches, holes, upper or lower black marks and of course on continuous media.

Complete with drivers and software for creating and printing labels and barcodes to be downloaded from the manufacturer's website.

Print directly on thermal paper and transfer with carbon ribbon on paper, TNT, polyamide, polyester and satin.

Main technical features:

• Manufacturer CITIZEN
• Product code 1000817
• Direct Thermal and Thermal Transfer Printing Technology
• Maximum resolution 203 x 203 DPI
• Print speed 101.6 mm/s
• Maximum print width 10.4 cm
• Connectivity via USB or RS232 serial (optional: Ethernet LAN, WiFi and Parallel)
• Installed RAM 8 MB
• Flash memory 2 MB
• Buffer buffer 512 KB
• Average usable thickness at 0.0635 - 0.254 mm
• Average maximum length 81.2 cm
• Embedded barcodes CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, Industrial 2/5, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
• Number of fonts 9
• Black color
• UL, C-UL, FCC A, CCC, CE certification
• Power supply AC 220-240V, 50/60Hz
• Width 231 mm
• Depth 289 mm
• Height 263 mm
• Weight 4.9 kg

Supports 360 m externally inked ribbon rolls with a 25.4 mm (1") bore.

Adjustable transmissive and reflective gap detection sensors for black mark reading plus ribbon detection sensor, ribbon end sensor and open print head.
