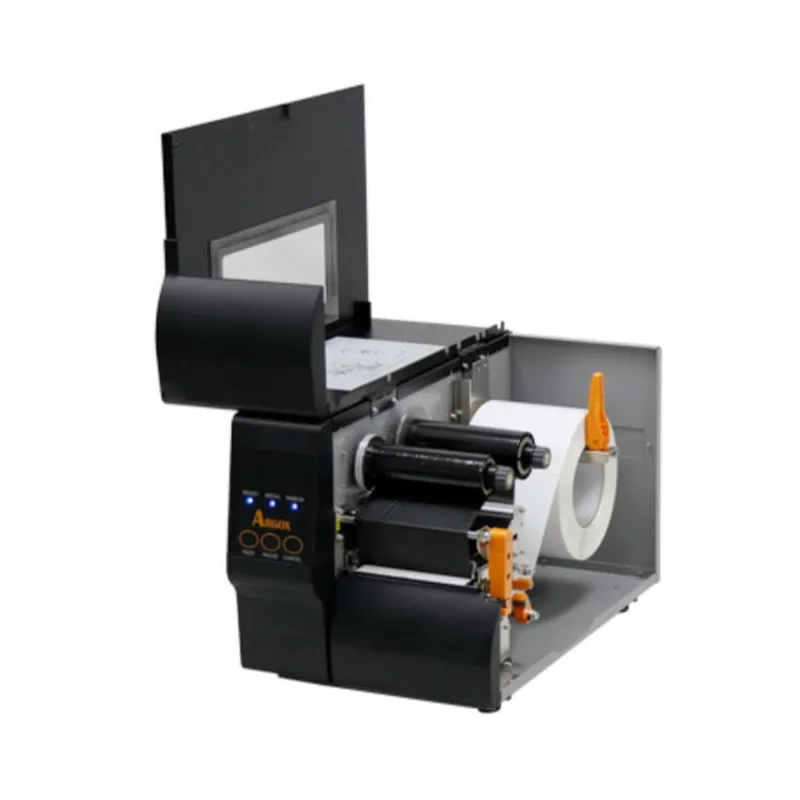

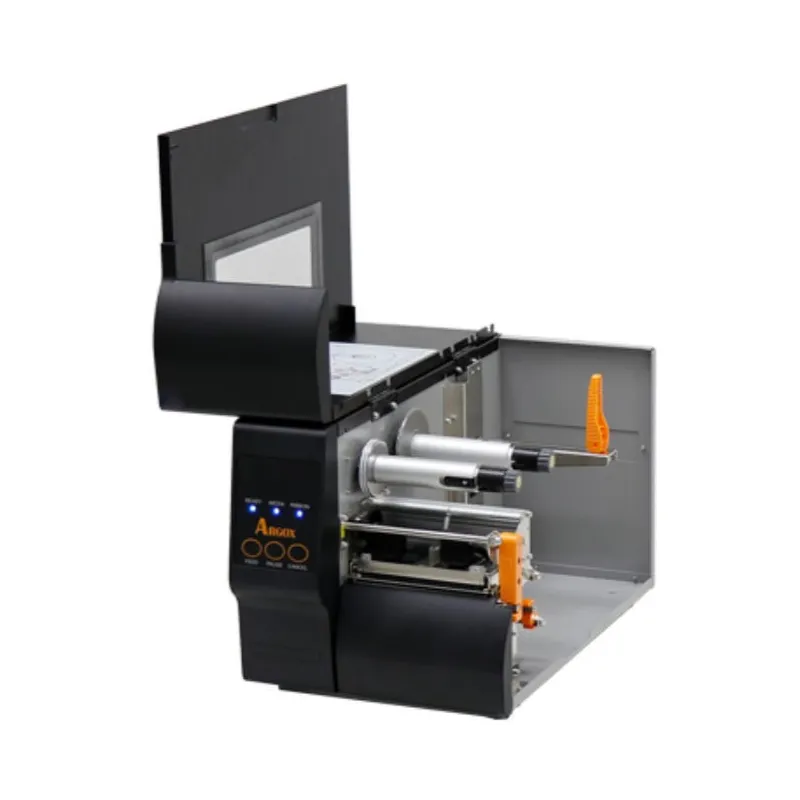

Argox iX4-240 Industrial direct thermal and transfer printer for labels and barcodes

New design, following in the footsteps of the historic X1000, the iX4-240 supports a large label roll with an external diameter of up to 22 cm and ribbons up to 450 meters. Print speeds of up to 153 mm sec. and even at maximum speed, it can still maintain perfect print quality. The iX-240 has an integrated RJ45 connector for Ethernet network connection, Dual USB, and RS-232 serial. As an option, it can be equipped with Wi-Fi, GPIO card / parallel port.

Technical features:

Max. speed 6 ips (153 mm/sec)
Print length Max. 100” (2.54m)
Max. print width 4.13” (105 mm)
Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
CPU Typo 32 bit RISC microprocessor
Sensors 1 Reflective (Mobile) & 1 Transmissive (Mobile)
Operating Panel 3 LED indicators, 3 Buttons (Feed)
Interfaces and connections USB device, RS-232, Ethernet, USB host x 2
Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H ( 1.25mm ~ 6.0mm ) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics PPLA: PCX, BMP, IMG, HEX,GDI, PPLB: PCX, BMP, Binary raster, GDI, PPLZ: GRF, Hex, GDI
PPLA, PPLB, PPLZ, Zebra emulations
Software-label Editing BarTender® from Seaguall Scientific, Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Printer Tool software utility
Argox Seaguall Driver (Windows XP/Vista/Win7/Win8/Win10) - Argox Linux Printer Driver - Argox macOS Printer Driver - Argox RPi Printer Driver
Media types: Roroli die-cut labels, continuous rolls, fan-fold, black mark, tags, tickets, Anima 40/76
Media Max Width: 4.48” (114mm). Minimum: 1” (25.4 mm).
Ribbon Max. Width: 4.4” (112mm). Minimum: 1” (25.4 mm). Length up to 450m Max, Core 1” ( 25.4mm ). Internal or external inking
Dimensions Width 257 mm x Height 263 mm x Length 432 mm
Weight 13 kgs
Power supply Mains 100~240V, 50~60Hz
Operation Temperature: 40°F~104°F (4°C~40°C), Humidity 0% ~ 90%
Optional Guillotine Cutter, Rotary Cutter, Peel Off, Rewinder, WLAN Kit, GPIO, Parallel Port Module, External Rewinder.
CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI certifications
Attention *Argox reserves the right to change specifications without prior notice.
